Coretech Actuator

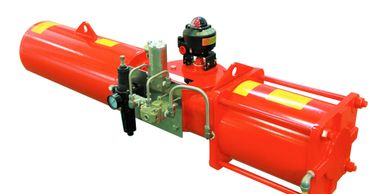

High Pressure Pipeline Actuators

Pneumatic Rack Pinion Actuators

The HP Series actuators offers following features:

Double acting as the standard spring return optional
Fabricated drive module housing for durability
Torque range up to 450,000 Nm / 4,000,000 Lb-In
Working pressure up to 3,000 PSI

Pneumatic Rack Pinion Actuators

The RP Series pneumatic actuators are available in:

PED 97/23/EC compliant to meet the stringent requirements of pressure mounting vessels
Spring return and double acting version
Torque range up to 13,000 Nm / 115,000 Lb-In
Operating pressure: pneumatic—30 to 120 PSI

Pneumatic Scotch Yoke Actuators

Pneumatic Rack Pinion Actuators

EH Intelligent Electro-Hydraulic Actuators

The SP Series pneumatic actuators are available in:

PED 97/23/EC compliant to meet the stringent requirements of pressure mounting vessels
Spring return and double acting version
Torque range up to 256,000 Nm /2,273,500 Lb-In
Operating pressure: pneumatic—30 to 220 PSI

EH Intelligent Electro-Hydraulic Actuators

The EH Series actuators offers following features:

Remote network bus communication protocol
Non-invasive bluetooth and infrared operation
Operating temperature -50 to 75C
Stable and wide selection of torque can reach 600,000N.m

EH Intelligent Electro-Hydraulic Actuators

Electric Actuators

EH Intelligent Electro-Hydraulic Actuators

Electric Actuators

The EL Series electric actuators are available in:

Multi-turn intelligent electric device
Straight stroke intelligent electric device
Angular stroke intelligent electric device

Master valve

G Series Forged Trunnion Ball Valve

Series: G Series Trunnion Mounted Ball Valve Sizes: 2" through 56"

Pressure: ANSI 150 ~ 2500 and API 2000 to 15000

Temperature: -320 °F (-196 °C) to 450 °F

B Series Floating Ball Valve

G Series Forged Trunnion Ball Valve

Series: B Series Floating Ball Valve

Sizes: 1/2" through 10"

Pressure: ANSI 150 through 2500

Temperature: -320 °F (-196 °C) to 450 °F

API 6D Axial Flow Check Valve

G Series Forged Trunnion Ball Valve

API 6D Axial Flow Check Valve

Series: API 6D Axial Flow Check Valve

Features: ASME B16.10 Face to face dimensions

2" to 48" line size

ASME Class 150 to 2500

API Cast Steel Valve Series

API 602 Forged Steel Valve Series

API 6D Axial Flow Check Valve

Series: API 600 Series Cast Steel Valve

Sizes: 2" through 64"

Pressure: ANSI 150 through 2500

Temperature: -320 °F (-196 °C) to 575 °F

API 6D Gate Valve

API 602 Forged Steel Valve Series

Series: API 6D Slab Gate Valve

Size: NPS 2"-64" (DN 50 - 1600).

Pressure: Class 150, 300, 600, 800, 900, 1500, and 2500

Body Materials: Carbon Steel, Stainless steel, and alloy steel

API 602 Forged Steel Valve Series

Series: API 602 Forged Steel Valve

Sizes: 1/2" through 2"

Pressure: ANSI 150 through 2500

Temperature: -320 °F (-196 °C) to 600 °F.

Our G-Series Valve

Standard Features

Double block and bleed
Spring loaded floating seat design
Cavity pressure self-relieving
Multiple seal for protection against external leakage
Stem separated from the ball and anti-blowout design
Triple seals for protection against stem leakage / Meet TA LUFT & ISO 15848
Stainless steel trim parts for 4” and smaller / ENP plating for trim parts for 6” and up
Antistatic device
Emergency stem and seats sealant injection fitting
Fire safe to API 607 & API 6FA
NACE compliance and fully comply with MR-0175

Features on Demand

Double piston effect design (DIB-1 type and DIB-2 type)
Live-loaded stem packing feature;
Lip seal design
Cryogenic service design ( -196 °C or -320 °F)
Extended stem design for buried service
